Description

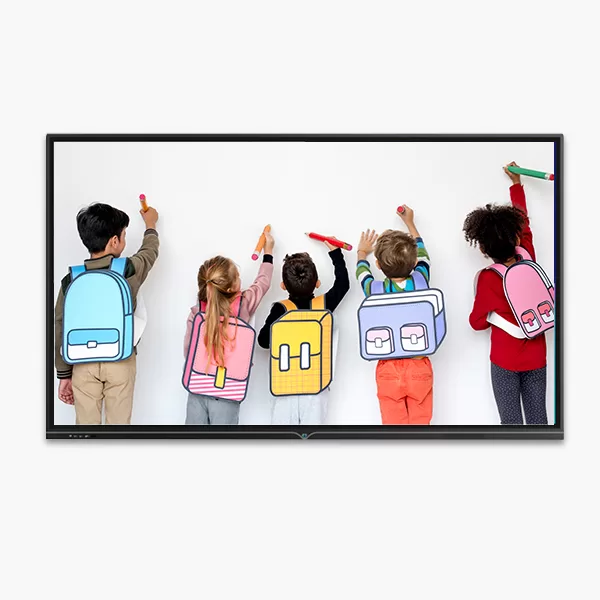

OD18 Series Interactive Whiteboard for Classroom

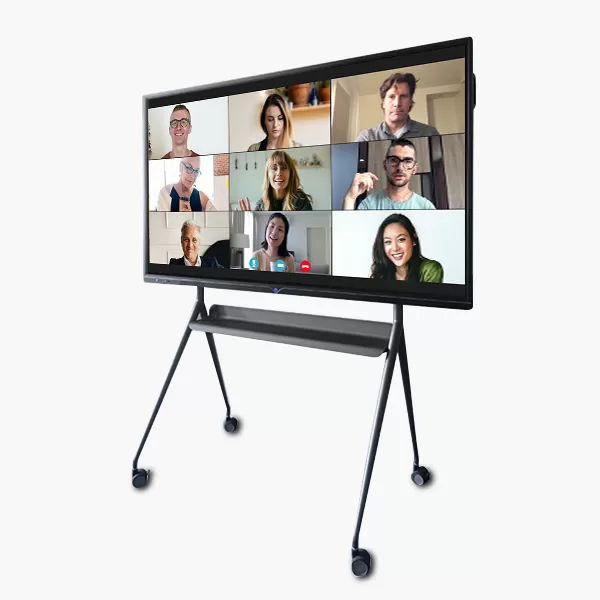

Experience the future of education with the OD18 Series interactive whiteboard for classroom . This revolutionary interactive display board delivers stunning visuals and seamless compatibility, featuring an Ultra HD 4K smart touch screen and dual Android & Windows systems. It empowers video conferences and remote teaching with its high-quality camera and microphone, while wireless screen projection enables easy content sharing. With 20-point IR touch technology, multiple users can collaborate, enhancing the learning experience. Engage students with interactive lessons, including annotation, smooth writing, and gesture control. Enjoy the convenience of mobility with the interactive board classroom on wheels, allowing effortless transfer between classrooms. Elevate classroom interactions with this cutting-edge interactive displays for education.
Product Parameter
- Screen Size: 65 inch
- Physical (mm):1486*921*89.1
- Net Weight: 37.2 kg
- Brightness: 240-280 cd/㎡
- Display Area: 1428.2*803.2
- Packaging (mm): 1486*921*89.1
- Gross Weight: 46 kg
- Screen Size: 75 inch
- Physical (mm)：1708*1046.3*89.1
- Net Weight: 54 kg
- Brightness: 300-350 cd/㎡
- Display Area: 1646*925.5
- Packaging (mm): 1846*1180*215
- Gross Weight: 68.5 kg
- Screen Size: 86 inch
- Physical (mm)： 1954*1185*89.1
- Net Weight: 65.8 kg
- Brightness: 300-380 cd/㎡
- Display Area: 1892*1064
- Packaging (mm): 2092*1319*215
- Gross Weight: 83kg
- Screen Size: 98 inch
- Physical (mm)： 2218.2*1337.9*100.8
- Net Weight: 89.5 kg
- Brightness: 400-450 cd/㎡
- Display Area: 2157*1212.4
- Packaging (mm): 2357*1478*215
- Gross Weight: 110 kg
- Panel Brand: BOE Brand new gauge A Screen(LG、CSOT、AUO Optional)
- Screen Ratio: 16:9
- Visual Angle: 178°/178°
- Color Gamut(NTSC): 72%
- Life: ＞6000 hours
- Resolution: 3840×2160 (UHD) @60hz, 4k UHD Screen
- Panel Type: TFT-LCD S-PVA
- Ratio Contrast: 1:1200
- Respond Time: 8ms
- Backlight: WLED
- The Speaker: 2×8Ω/8w (Built in)
- Touch Type: Infrared Touch Frame
- Glass: 4mm Tempered glass
- Respond Time: ＜8ms
- The interface Definition: USB2.0 (Full Speed)
- Positional Accuracy: More than 90% of the touch area is 2mm
- The Power Supply Model: Full Duplex usb-powered DC+5V up to 500ma
- Touch Point: 20 t0uch points
- Touch Strength: Zero pressure touch
- Induction Life: 6 milion times
- The Light Resistance: It has light resistance
- Number of Infrared Line (WxD): 32767×32767
- Glass Transmittance: ＞88%（Higher Transmittance Depends on glass surface treatment technology such as AR/AG）
- Model: CVTE-T982
- Glass: 4mm Tempered glass
- Respond Time: ＜8ms
- The interface Definition: USB2.0 (Full Speed)
- Processor: T982-NODN
- Audio: 480i, 480p, 720p, 1080i, 1080p, 2160p
- RAM: 3G RAM (1G/2G/4G/8G Optional)
- Power Consumption （Typical Value）: AC100-240V~(+/- 10%), 50/60 hz
- The Power Interface: ≤ 330W
- Stand By Power Consumption: ≤0.5W
- Switching Power Supply: European Standard 220V two – phase three-wire system
- Working Temperature: 0℃~50℃
- Working Humidity: 20%~80% （No Condensation）
- Display Mode: S-ips, often black display, transmission
- torage Temperature -20℃~60℃
- Storage Humidity 10%~90% （No Condensation）
- Maximum Service Time: 24 hours
- System Version: Android 7/8/9/10/11 and other Version for option
- Graphic Board: Core HD Graphics 3000
- Memory Memory 4G/8G/16G option
- Processor: Intel core i3/i5/i7 for option
- Main Frequency: 2.4Ghz
- Hard Disc: 128G/256G/512G/1T option
Note*: Giiking interactive whiteboard for classroom supports various custom, including the configuration of the camera, interface expansion, software, color, etc. Please click the button below to let us your specific Requirement. So that we are able to provide you with accurate and interactive displays for education cost.
Click HereProduct Details

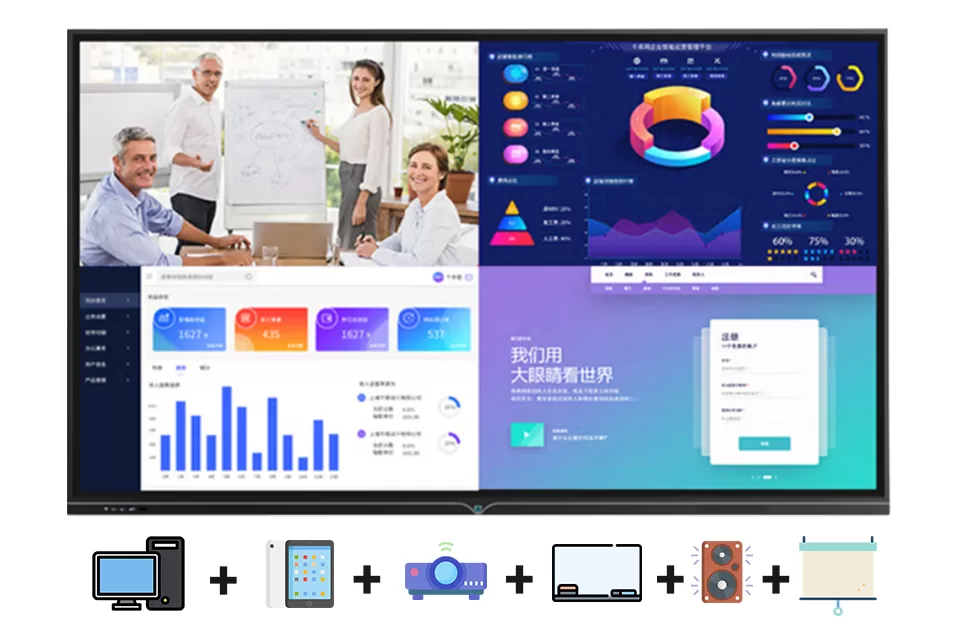

All in one design with Multi-devices
Step into the future of education with our versatile interactive display board. It combines the power of a computer, tablet, projector, whiteboard, and audio functions, fostering interactive teaching and collaborative learning in one compact device.
Smooth Writing Experience
Spark creativity in the classroom with our cutting-edge interactive displays for education . Experience the seamless touch of our infrared-sensitive board, allowing for effortless expression and precise writing. With a rapid 0.04s response time and 1.0 mm precision, collaboration and idea-sharing become a breeze, inspiring students to engage and explore.

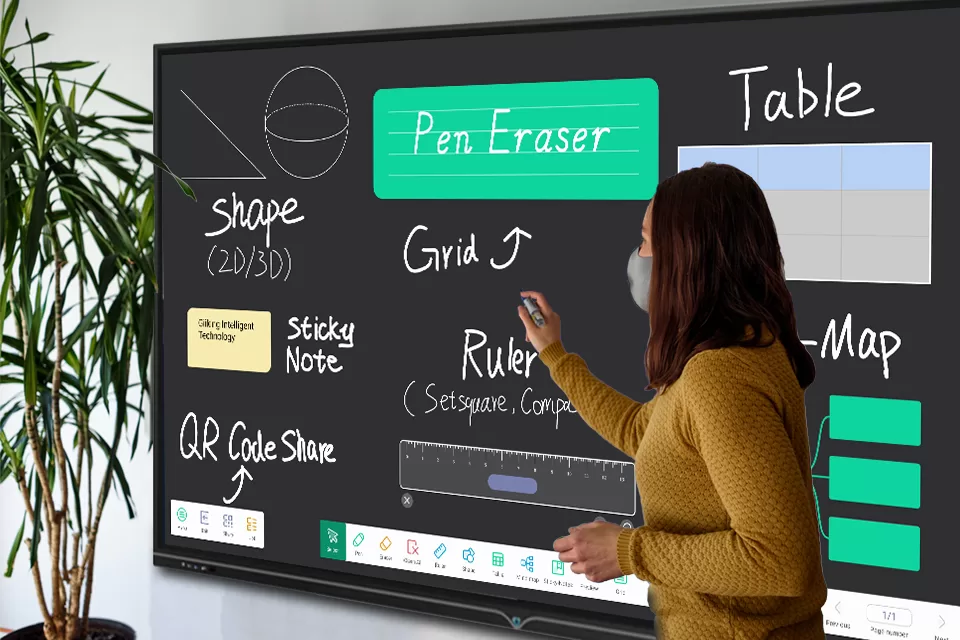

Intelligent Whiteboard - Transformative teaching tools
Revolutionize your teaching using our cutting-edge interactive whiteboard for classroom, specifically crafted to enrich education. Experience effortless teamwork, versatile features, and empower educators with our advanced smart whiteboard.
Smart Annotation-Annotate Any Page, Anywhere, with Ease
Enhance Classroom Engagement with 0D18 interactive display board : Ignite Dynamic Learning and Foster Student Interaction with Smart Annotation

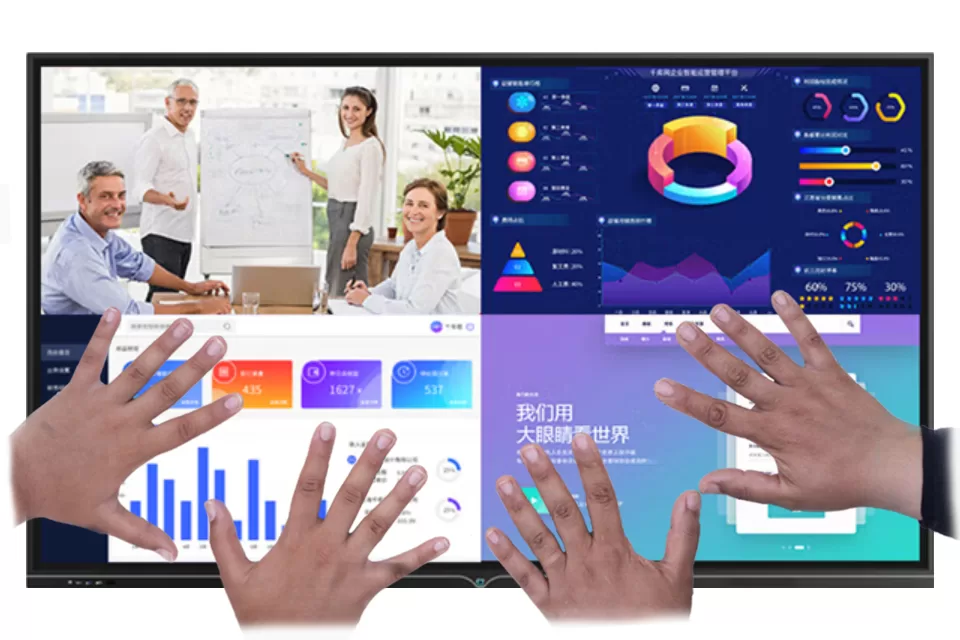

20-Point IR Touch-Revolutionize classroom interaction
Boost Office Efficiency with our interactive board classroom : Experience Simultaneous Writing and Collaboration with 20-Point IR Touch, Creating an Immersive and Productive Environment.

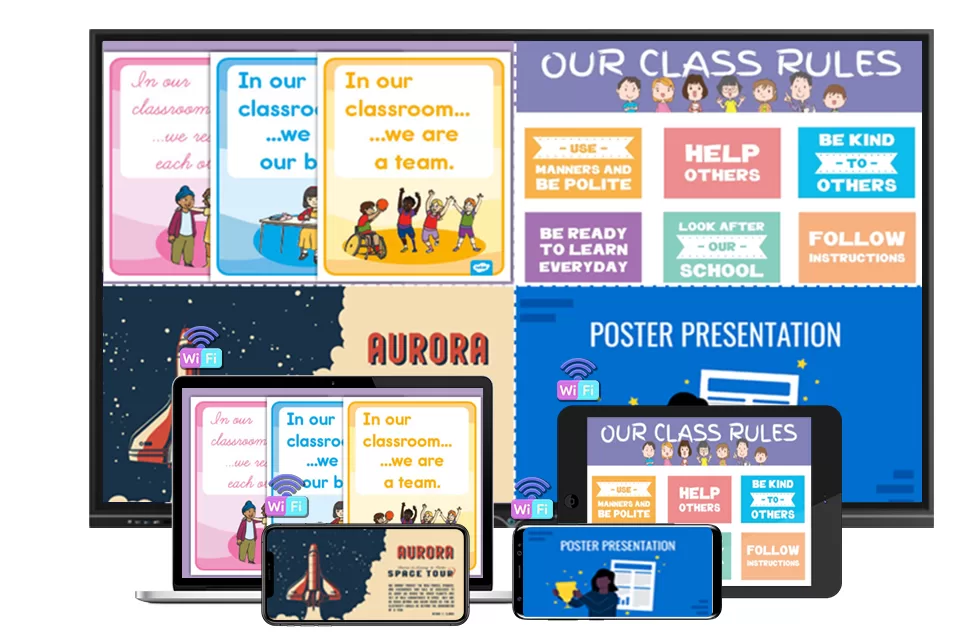

Wireless Projection - Multi Device collaborative learning
Unleash the Power of the Office Smart Board: Wireless Connectivity, Collaborative Projection, and Dynamic Learning Experiences for Effortless Teaching and Streamlined Convenience with supporting Maximum 4 devices

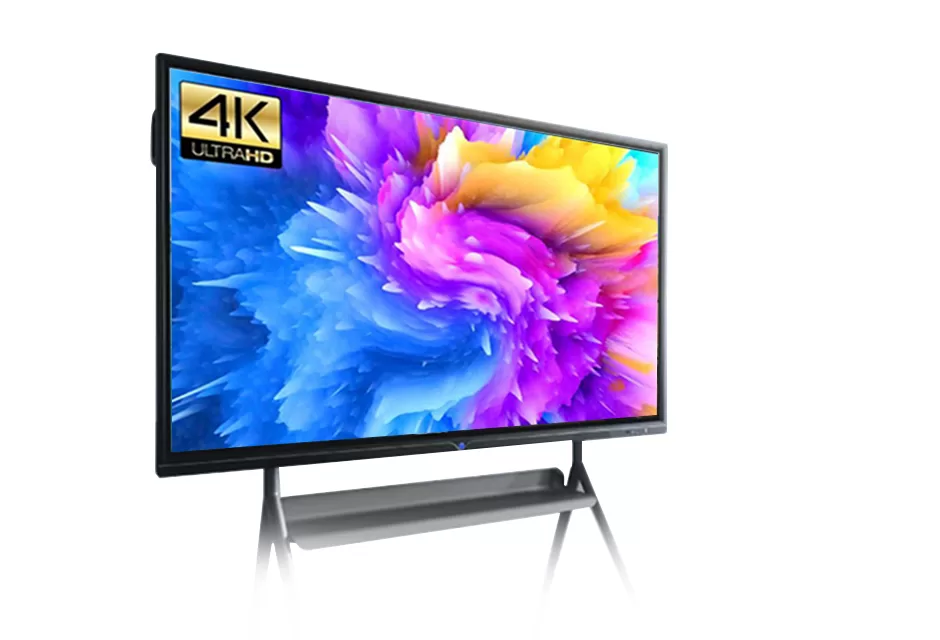

Ultra 4K Screen - Superior image quality and brightness
Immerse students in a world of vivid detail and clarity with our interactive smart board for classroom 's Ultra 4K screen. Experience visuals with exceptional precision, enhancing engagement and bringing lessons to life in the classroom.

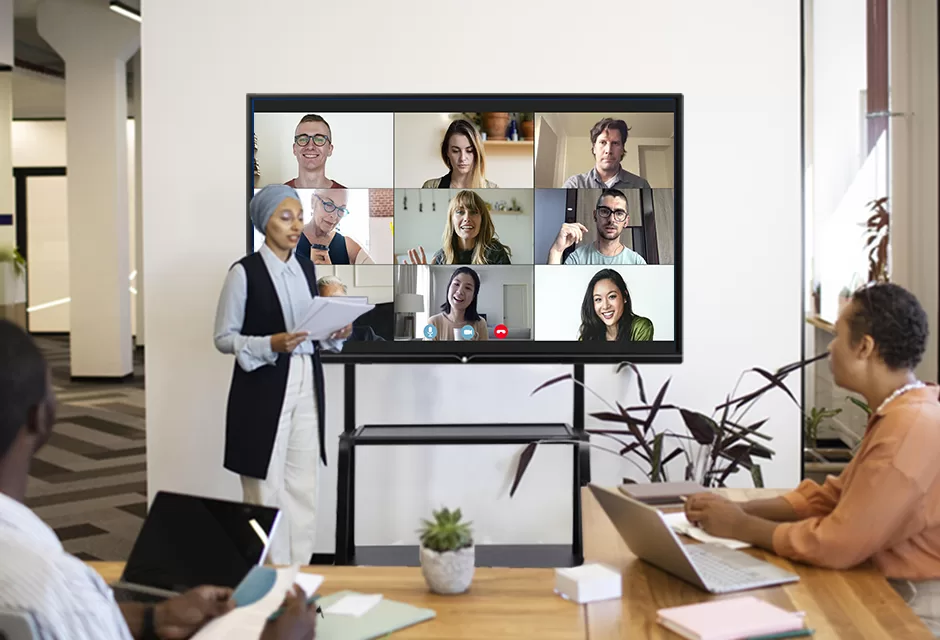

1300W Pixel Camera & 8 arrays Microphone
Enhance Collaboration with Our Advanced Interactive Whiteboard for classroom : Crisp Visuals and Superior Audio Quality, equipped with 1300MP Pixel Camera and 8 arrays Microphone for Elevated Remote Meetings and Engaging Teaching Sessions.

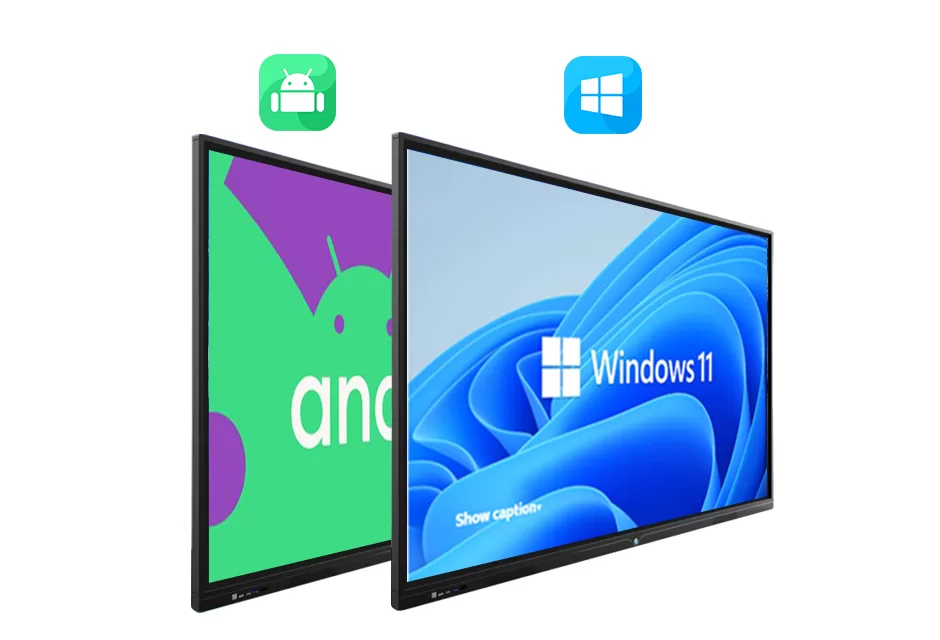

Android & Windows Dual Systems-Seamless teaching empowerment
Unleash Classroom Potential with Our Interactive display board : Android & Windows Dual Systems for Seamless Platform Switching, App Integration, and Enhanced Productivity in Teaching and Learning.
